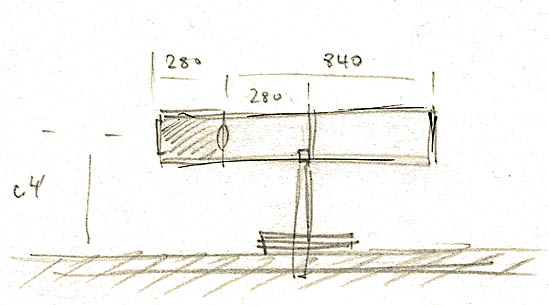

Early sketch of camera showing dimensions calculated for 210 and 140mm lenses, with camera depth ('bellows extension') of 280mm giving 1:3 with 210 lens and 1:1 with 140mm.

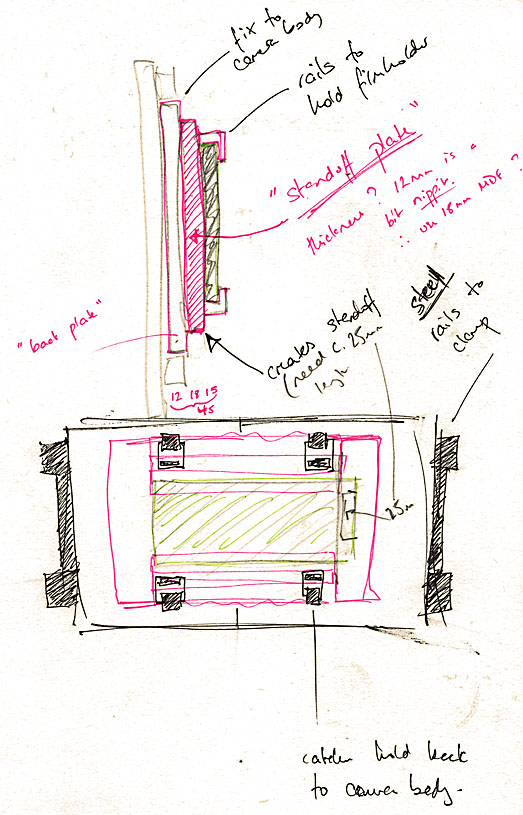

Early rough sketch of camera back design to accommodate 6x16 filmholder.
